2 Ton Pressure Unit

  • 3560 CAT Triplex Pump

  • Volume @ Maximum RPM –90LPM @ 1160RPM up to 3000 psi

  • Maximum Allowable Working Pressure – 3500 psi

  • Tank Capacity – 3m3 – 2 Compartment - 1.5m3/1.5m3

IMG_6723.HEIC

Single Axle Pressure Unit

  • 92 HP Meyers Aplex SC65H

  • Volume @ Maximum RPM – 120LPM @ 130RPM up to 3000 psi

  • Maximum Allowable Working Pressure – 5000 psi

  • Tank Capacity – 8m3 – 2 Compartment - 4m3/4m3

Tandem Pressure Unit (2)

  • 165 HP Gardner Denver 3X5 Triplex Pump

  • Volume @ Maximum RPM –525LPM @ 300RPM up to 1750 psi

  • Maximum Allowable Working Pressure – 6000 psi

  • Tank Capacity – 12m3 - 2 Compartment - 4m3/8m3  –  Additional 21m3 Tri Pup Trailer

Tridem Pressure Unit

  • 600 HP Century 4X5 Triplex Pump

  • Volume @ Maximum RPM –1500LPM @ 300RPM up to 1500 psi

  • Maximum Allowable Working Pressure – 6000 psi

  • Tank Capacity – 15m3 - 2 Compartment - 10m3/5m3  –  Additional 21m3 Tri Pup Trailer


Tridem Hot Oil Unit (2)

  • 5.0M BTU ThermoGen Heater, 7.0M BTU ThermoGen Heater

  • 165HP Gardner Denver 3x5 Triplex Pump

  • Volume @Maximum RPM--900LPM @ 300RPM up to 875 psi

  • Volume @Maximum RPM--500LPM @ 300RPM up to 1750 psi

  • Maximum Allowable Working Pressure - 4000 psi and 6000 psi

  • Tank Capacity - 8m3 - Additional 32m3 Quad Wagon - Additional 21m3 Tri Pup Trailer

IMG_7427 2.HEIC

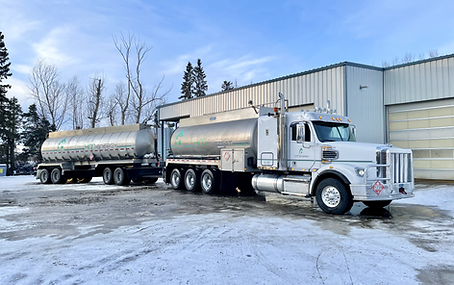

Tridem Tank Unit (2)

  • Volume @Maximum RPM - 1100LPM @ 1100RPM up to 120 psi

  • Stainless Steel Lazer rig up 22m3 total - 2 Compartment - 14m3/8m3

  • Aluminium Lazer rig up 22m3 total - 2 Compartment - 16m3/6m3

  • Additional Stainless Steel 32m3 Quad Wagon - 1 Compartment
